- RICHI PELLET MILL SERIES
BBQ Pellet Mill
Those natural fuels are processed with bbq pellet mill to be your grill favorite, without petroleum ingredients, chemical additives or binders.
They have a calorific value of 8500 BTU per pound. They do not produce cross flames and are low in ash. Burns at high temperatures with almost no smoke. At high temperatures, the bbq pellets will smolder and produce nice smoke.
Therefore, the equipment for producing such barbecued pellets has become the key. As the saying goes, a good start is half the battle. Choosing a good bbq pellet machine will definitely make the pelleting business better and better.
RICHI has been cultivating pellet production equipment for many years and has rich experience. If you want to build your own pellet mill for bbq smoke pellets, just contact us.
RICHI BBQ Pellet Making Machine, Since 1995!
We are a professional bbq pellet mill manufacturer and exporter in China. Customers around the world choose us not only for our product, but also for our services. RICHI not only provide wood pellet machine for sale, but also provide our customers with a complete turnkey project on how to make wood sawdust into pellets.
Contact us, what you get is not only RICHI equipment, but also a guarantee for your business.
BRAND
RICHI ®
MODEL
MZLH Series
CAPACITY
300KG~5TON PER HOUR
POWER
37~300KW
Making Grill Pellets With BBQ Pellet Mill
Do you want to make barbecue pellets; do you want to build your own pellet mill; do you want to buy bbq pellet machine; RICHI can provide you with guidance in all aspects:
How to identify and select excellent pellet machine manufacturers; the precautions for buy pellet machines; how to establish your own pellet production plant; how to make pellets with sawdust; etc.
Contact Us:
- Office Add: E-commerce Industrial Park, Zhengzhou City, Henan Province, China
- Factory Add: Longhai 2nd Rd & 10th St, Longting District, Kaifeng City, Henan Province, China
- enquiry@pelletingmachine.com
- +86 158 0389 7674

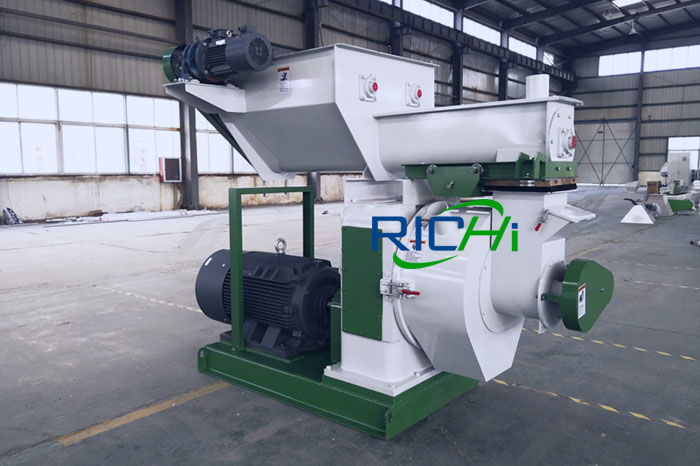

RICHI BBQ Pellet Mill Machine
- Introduction
RICHI bbq pellet mill for sale is used to make smoking pellet of different sizes and types for pellet smokers. For example: oak wood pellet, apple wood pellet, or other fruit wood pellet. This kind of pellet is mainly used in barbecues, wood smokers, pellet stove, etc.
For this machine, RICHI provides installation instructions and design layout for free. Contact us for the latest bbq pellet mill price.

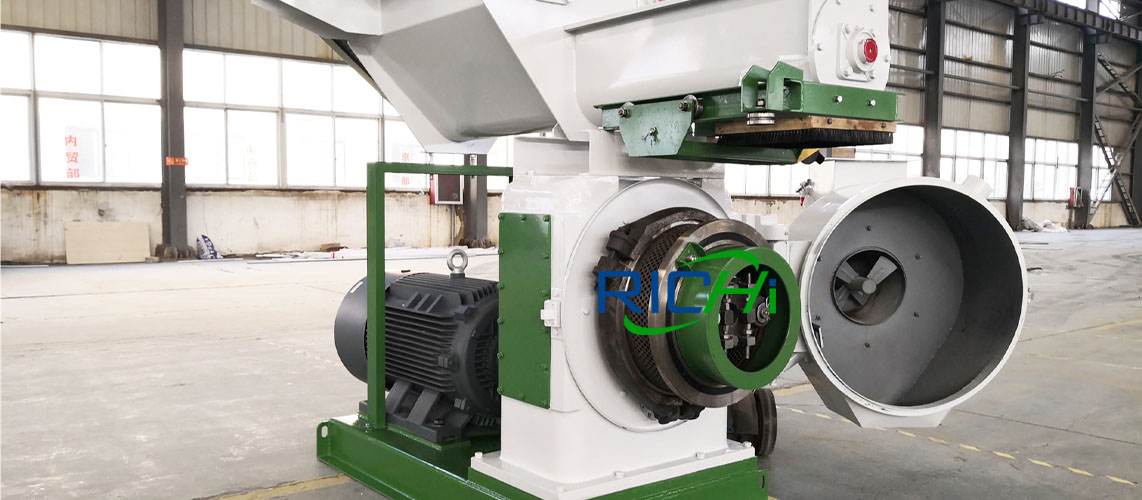

- Structure
The bbq pellet mill is composed of a pellet machine frame, a large reduction box, a bearing chamber, a feeding cover, a discharging part, a motor, a pressure roller assembly, and a mold.
The bbq pellet machine is operated in a direct connection with a motor. The motor is connected to the shaft of the reducer through a gear coupling. After a 90° change of direction, the horizontal motor drives the vertical casting hollow transfer spindle, and the spindle drives the roller to roll the mold. The inner surface completes the pelletizing process.
When bbq pellet machine working, the sawdust or other biomass material falls vertically from the feed inlet, and the material is continuously and uniformly distributed on the surface of the mold cavity (the contact surface between the pressure roller and the mold) through the rotation of the pressure roller, and the powdery material is crushed by the pressure roller holes through the mold (holes evenly distributed on the inner surface of the mold). In this process, the material is subjected to high pressure and high temperature to produce physical changes or appropriate chemical changes (according to the material), which promotes the powdery material to form a continuously elongated cylindrical solid body, and then the pellets are cut by a knife and discharged from the discharge port. The compaction process of the pellets is completed.
- Parameter
All the bbq pellet mill for sale, we have the following parameters, but when different raw materials are used, the capacity is different, and the related equipment that needs to be matched may also be different. Therefore, according to the requirements of raw materials and capacity, contact us for final guidance and suggestions.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH768 | MZLH858 |
|---|---|---|---|---|---|---|
| Anti-caking Feeder Power | 1.5KW | 1.5KW | 1.5KW | 2.2KW | 3KW | 3KW |
| Forced Feeder Power | 0.55KW | 0.55KW | 0.55KW | 0.75KW | 1KW | 1KW |
| Pellet Machine Power | 37KW | 55KW | 110KW | 160KW | 250KW | 280KW |
| Capacity(wood sawdust,biomass) | 300-400KG/H | 500-700KG/H | 1.0-1.2 T/H | 2.0-2.5 T/H | 2.5-4 T/H | 3-4.5 T/H |
| Capacity(grass,straw) | 600-800KG/H | 800-1000KG/H | 1.5-2 T/H | 3-4 T/H | 5-7 T/H | 8-10 T/H |
| Capacity(organic fertilizer) | 1-2 T/H | 3-4 T/H | 5-6 T/H | 7-8 T/H | 9-10 T/H | 10-12 T/H |
| Final Pellet | 6-12mm | 6-12mm | 6-12mm | 6-12mm | 6-12mm | 6-12mm |
| Weight(KG) | 2500 | 3500 | 4000 | 4500 | 5000 | 5500 |
| Dimension(mm) | 2200*900*1300 | 2500*1100*1600 | 2800*1150*1730 | 3000*1260*1860 | 3300*1500*2000 | 3500*1600*2180 |
Application Range of BBQ Pellet Mill
- Application
The raw materials of the pellets produced by the bbq pellet mill can be logs, branches, shavings, wood chips, sawdust, and other forestry wastes.
This kind of pellets are mainly used in biomass power plants, home heating (mainly used in pellet stoves), smoking pellets (if the raw material is fruit trees, the pellets produced are generally used for barbecue, wood pellet smoker), animal supplies (horse bedding pellets), and many more.
RICHI recommends that you first clarify what kind of raw materials you are using and what market the pellets produced are going to sell.
We are not only a wood pellet mill manufacturer, we also provide customers with complete pellet production solutions, just tell us your raw materials and expected output.
Why Customer Choose RICHI Pellet Mill Machine
- Features
- Anti-Arch Structure In BBQ Pellet Mill
On the top of the bbq pellet machine with a anti-caking bin . Inside the bin, there have two rollers for breaking the sawdust to avoid raw materials becoming cake . And the bin can keep pellet machine working more smoothly.
- Pellet Mill Force Feeder
Because the wood sawdust is too light , so it is difficult to enter into the sawdust pelleting chamber , so we add a force feeder here to improve the efficiency of the sawdust pelleting process.
- Sawdust Pelleting Chamber
Optimized structure of the wood sawdust pelleting chamber ensures the uniformity of the material and maximizes the working potential of the wood pellet machine. Through the pressure between ring die and rollers, to make pellets. After pelleting , the wood pellets temperature is high about 70-80℃. And have 98% qualified pellets, 2% powder.
- Ring Die And Press Roller
This is the 304 stainless steel ring die, it determines the final sizes of the feed! For the ring die, it has the following data: “d”, which refers to the diameter of the ring die ; “h”, which the the depth of the hole, or you can say the thickness of the hole. (d/h=compression ratio).
- Pellet Mill Cutting Device
To control the length of final sawdust pellets , means through adjust the distance between cutter and ring die to get the different length of wood pellets.
- Steam Discharging Outlet
When the pellet mill machine running , inside the pelletizing chamber ,the temperature is very high, and the moisture of sawdust enter into the pellet chamber is 15%-17% ,so it will produce a lot of steam . In order to keep the pellet machine good working, so we open a hole here, to connect with draught fan and cyclone, to exchange the steam inside the chamber and also reduce the temperature in the chamber.
- Siemens Motors ,SKF Bearings
Siemens electric motors are synonymous with quality, innovation and the highest efficiency. The high efficiency level reduces energy consumption and directly saves costs for users. High protection level to ensure the safety and reliability for users.
BBQ Pellet Mill For Sale On Stock In RICHI
Trusted RICHI BBQ Pellet Mill For Sale
26Years Experience of Manufacturing and Exporting
“We have 26+ years’ experience of pellet mill machine, and have exported 110+ countries, such as USA, Canada, Indonesia, Australia, Netherlands, New Zealand, Greece, Italy, Angola, South Africa, Turkey, UK, Germany, Malaysia, Thailand and so on.”
Full Set of Certification
“RICHI has pass through the CE&IOS 9001 Certification, All the bbq pellet mill for sale has tested before delivery.”
Support Delivery Anywhere in The World
“RICHI Machinery can ship the bbq pellet making machine to your port in your country, we supply the FOB & CIF Price. Just contact us for more details.”
Full Support on Installation &Training
“We provide complete bbq pellet machine for sale, installation at the customer’s local area and promise to train – ‘how to make smoking pellets with pellet mill’ until the customer is proficient in operating the pelletizing system.”
Related Equipment Of BBQ Pellet Mill For Sale
The Related Guide About BBQ Pellet Machine
How To Make A BBQ Pellet Machine
- Main structure of ring die bbq pellet making machine
The ring die bbq pellet machine is mainly composed of a feeder, a conditioner, a pellet maker, an adjustment mechanism and a lubrication system.
- The feeder is composed of an electromagnetic speed regulating motor, a reducer, a coupling, auger shaft and auger shell.
- The speed-regulating motor is composed of a variable-frequency motor and a reducer. It is used in conjunction with a frequency converter. The speed-regulating motor can be controlled by the frequency converter to change its output speed.
- The feeding auger is composed of the auger shell, the auger shaft and the bearing with a seat, etc., and the auger shaft is driven by an adjustable speed motor through a coupling.

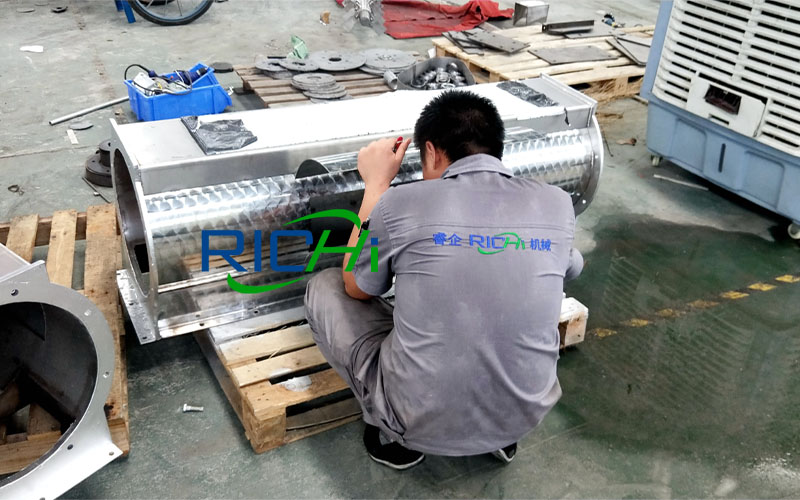

- The conditioner is composed of a motor, a transmission mechanism, a quenched and tempered rotor, a shell, and a steam inlet. Its function is to inject steam, temper the powdered materials to a certain temperature and humidity, and then send them into the granulating chamber for granulation.
- The conditioner shell is made of stainless steel.
- Technology Center
RICHI has advanced processing and testing equipment, such as large CNC plasma cutting machine, CNC large drilling machine, CNC shearing machine, CNC bending machine, CNC gantry milling machine, CNC sawing machine, CNC dynamic balancing machine, CNC universal milling machine, three CNC lathes. , large-scale professional paint room and other advanced production equipment. Henan Richi Machinery Co., Ltd. has developed more than 50 series of products such as bbq pellet making machine with excellent performance.
- Engineers And Technicians
RICHI Technology Research and development center has more than 300 professional R & D team, 80 senior engineers with many years of R & D and design experience, a group of innovative talents who are capable and vigorous in process equipment and control engineering.
- Manufacturing Strength
- 10,0000 square meters
- 30 sets of advanced manufacturing and testing equipment
- 3 heavy-duty modernized manufacturing and assembly workshops.
- Reliable Pellet Machine Expert
After years of development, we have experienced expert engineers. Not only are we constantly innovating the production and manufacturing of bbq pellet mill, but we can also give customers professional guidance and suggestions on making bbq pellets from any wood logs.

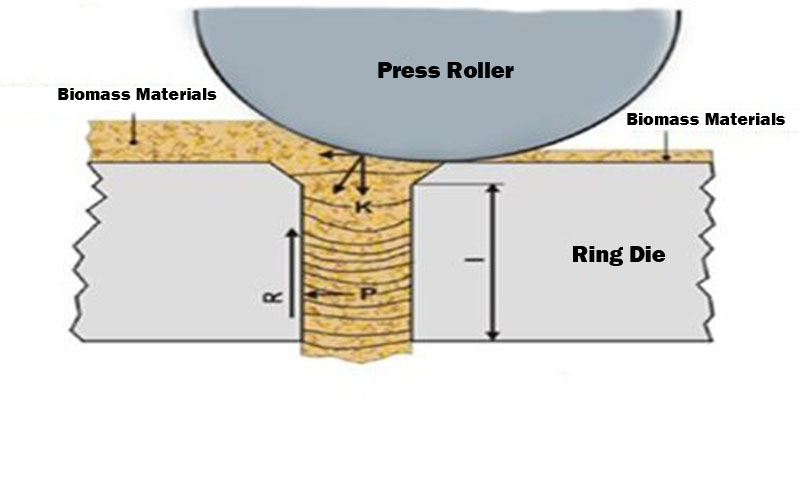

How Does A BBQ Pellet Machine Work
The bbq pellet mill is mainly composed of main motor, transmission mechanism, rotor, ring die, pressure roller, scraper, cutter assembly, body and door, etc.
The powdery material tempered by the conditioner is uniformly sent to the pressing zone composed of two pressure rollers and ring die by the rotating feed cone and two deflection scrapers on the front plate, and passes through the ring die and the pressure roller.
The relative rotating part gradually squeezes the powdery material into the ring die hole to form, and continuously extrudes to the outer end, and the formed particles are cut into the required length by the cutter, and finally the formed particles are discharged from the discharge port.

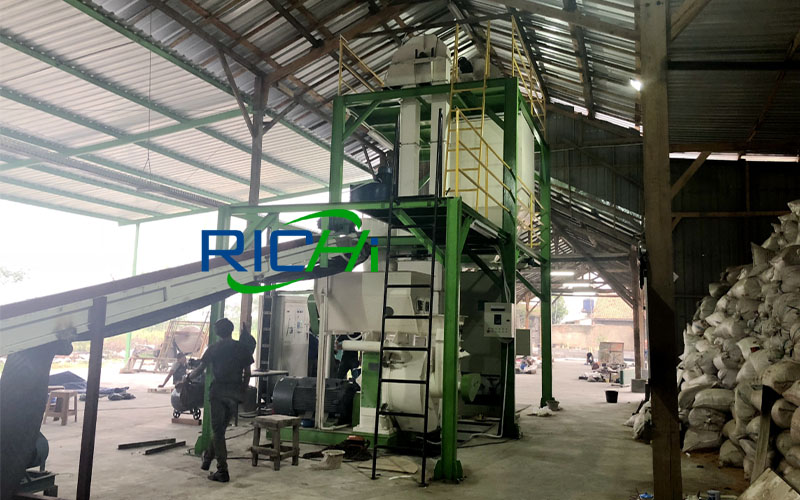

How To Build A BBQ Pellet Mill
Due to the vigorous development of the pellet market, whether it is hardwood sawdust pellets, bbq pellet, wood pellets for smoking grill, or biomass pellets, many investors want to enter the pellet industry, so how to establish a complete wood pellet production line?
- It must have land first, and land can be built to build a pellet mill, collect raw materials, and collect products. But you have to choose a good place, usually a place close to the raw materials or convenient transportation. It is best to have both of them.
- Budget. Plant construction funds, equipment purchase funds, preliminary operating funds, etc.
- Plant construction
When designing the plant, plan every inch of land as much as possible and reasonably. But don’t worry, because RICHI will help you design and plan the most reasonable plant - Buy equipment. Before buying a wood pelletizer or bbq pellet mill, you must first understand the product quality of the equipment company and compare it with similar companies. For example: RICHI Machinery is a leading professional manufacturer and exporter of wood pellet machines in China. CPM is the largest granulator company in the Americas. The position of ANDRITZ and Buhler in Europe, and many more.
- Equipment installation, usually the wood pellet equipment company sends personnel to guide the installation on site.

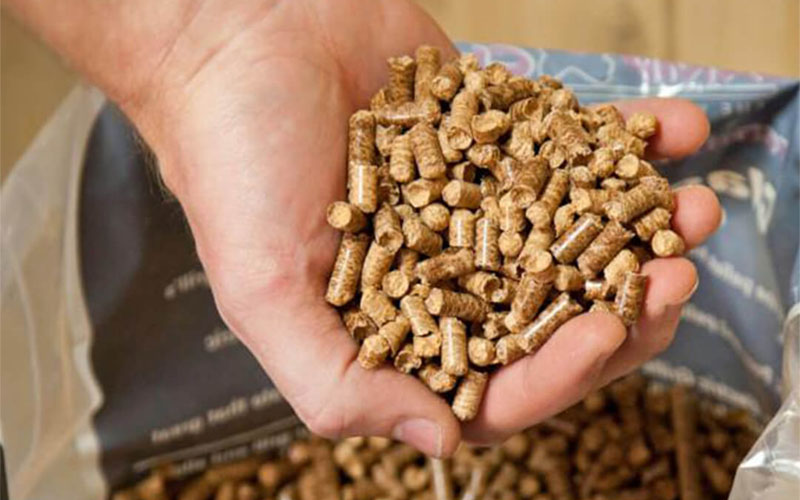

How To Make BBQ Pellets From Wood Logs
With the development of pelletizing technology, making your own wood pellets has become more and more simple, you only need to pay attention to the following points:
- Raw materials. If your raw materials are relatively large wood logs, then in the first step you need equipment that can peel and slice the trees; then use a shredder to crush the relatively large pieces of wood to sawdust below 5mm; if your raw materials are some forest waste, small branches, wood chips, etc., you can crush them directly without chipping.
- At this time, attention should be paid to the moisture content of the raw materials, and then if the wood sawdust are too wet, it needs to be dried to a moisture content of about 8-12% (note: the moisture content can be tested with a moisture meter). If you only make small-volume pellets, you can spread the sawdust on the ground and let it air dry.
- Pelletizing process. Start the bbq pellet mill or other pellet equipment, and evenly send the sawdust into the hopper of the pellet mill machine through the conveying equipment. The rotating ring die and press roller squeeze the sawdust and force it through the die hole. The high pressure will make the pellets compact, and the high temperature will melt the lignin in the sawdust and become sticky. Therefore, the sawdust produced have high pellet density, smooth and even bright surface.
- After the pelleting is completed. The pellets just coming out of the pellet mill are very hot, so they must be cooled to room temperature before use or storage.
You can find that making pellets with sawdust is just an easy task! But sawdust pellets can save you a lot of costs, and even make you profit. So it is wise to buy a bbq pellet mill now!
