- RICHI PELLET MILL SERIES
Grass Pellet Making Machine
Grass pellets are mainly used as herb feed for ruminants. It has higher fiber content and is easier to chew. It is suitable for raising cattle, sheep, horses, and ponies. RICHI has various grass pellet making machines for sale with different outputs and models.
After years of development, exploration, and discussion with our customers worldwide, our new grass pellet mill has added a forced feeding system to improve grass pellets’ production efficiency and output. To establish a grass pellet factory, contact us to buy a grass pellet machine and get a complete grass pellet production line.

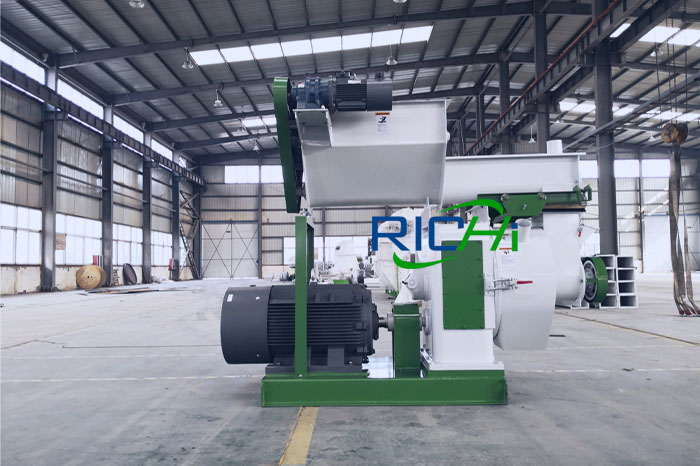

RICHI Grass Pellet Making Machine For Sale
We are a professional manufacturer and supplier of grass pellet machines in China. So far, we have provided pellet production equipment to more than 110 countries around the world. In addition to pellet machines, we mainly provide complete grass pellet mill solutions (from raw material processing to final finished pellet packaging), which is why customers like RICHI.
Order in RICHI, Get guarantee for your business.
BRAND
RICHI ®
MODEL
MZLH Series
CAPACITY
300KG~5TON PER HOUR
POWER
37~300KW
Grass Pellet Mill Solutions
Looking for grass pellet making machine for sale? Want to build a grass pellet mill plant? RICHI will give you guidance in all aspects:
how to choose excellent grass pellet machine manufacturers; the precautions for purchasing grass pellet mill; how to establish your own grass pellet production plant ; how to make pellets from grass etc.
Contact Us:
- Office Add: E-commerce Industrial Park, Zhengzhou City, Henan Province, China
- Factory Add: Longhai 2nd Rd & 10th St, Longting District, Kaifeng City, Henan Province, China
- enquiry@pelletingmachine.com
- +86 158 0389 7674
RICHI Grass Pellet Mill For Sale
- Introduction
RICHI grass pellet making machine is used to manufacture natural high-nutrient feed pellets for ruminants (cattle, sheep, horse). This kind of natural grass pellets mainly provide minerals, fiber and other nutrients that are difficult to obtain in animal feeding. Regarding how to build a grass pellet plant, RICHI provides free equipment installation instructions and plant design layout. Contact us for the latest grass pellet machine prices.
- Structure
The grass pellet making machine is composed of a pellet machine frame, a large reduction box, a bearing chamber, a feeding cover, a discharging part, a motor, a press roller assembly, and a ring die.
The grass pellet machine is operated in a direct connection with a motor. The motor is connected to the shaft of the reducer through a gear coupling. After a 90° change of direction, the horizontal motor drives the vertical casting hollow transfer spindle, and the spindle drives the roller to roll the mold. The inner surface completes the grass pelleting process.
When grass pellet mill working, the grass powder falls vertically from the feed inlet, and the material is continuously and uniformly distributed on the surface of the mold cavity (the contact surface between the press roller and the ring die) through the rotation of the press roller, and the grass powder is crushed by the press roller holes through the ring die (holes evenly distributed on the inner surface of the mold).
In this process, the material is subjected to high pressure and high temperature to produce physical changes or appropriate chemical changes (according to the material), which promotes the grass powder to form a continuously elongated cylindrical solid body, and then the pellets are cut by a knife and discharged from the discharge port. The compaction process of the grass pellets is completed.
- Parameter
All the grass pellet mill for sale, we have the following parameters, but when different raw materials are used, the capacity is different, and the related equipment that needs to be matched may also be different. Therefore, according to the requirements of raw materials and capacity, contact us for final guidance and suggestions.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH768 | MZLH858 |
|---|---|---|---|---|---|---|
| Anti-caking Feeder Power | 1.5KW | 1.5KW | 1.5KW | 2.2KW | 3KW | 3KW |
| Forced Feeder Power | 0.55KW | 0.55KW | 0.55KW | 0.75KW | 1KW | 1KW |
| Pellet Machine Power | 37KW | 55KW | 110KW | 160KW | 250KW | 280KW |
| Capacity(wood sawdust,biomass) | 300-400KG/H | 500-700KG/H | 1.0-1.2 T/H | 2.0-2.5 T/H | 2.5-4 T/H | 3-4.5 T/H |
| Capacity(grass,straw) | 600-800KG/H | 800-1000KG/H | 1.5-2 T/H | 3-4 T/H | 5-7 T/H | 8-10 T/H |
| Capacity(organic fertilizer) | 1-2 T/H | 3-4 T/H | 5-6 T/H | 7-8 T/H | 9-10 T/H | 10-12 T/H |
| Final Pellet | 6-12mm | 6-12mm | 6-12mm | 6-12mm | 6-12mm | 6-12mm |
| Weight(KG) | 2500 | 3500 | 4000 | 4500 | 5000 | 5500 |
| Dimension(mm) | 2200*900*1300 | 2500*1100*1600 | 2800*1150*1730 | 3000*1260*1860 | 3300*1500*2000 | 3500*1600*2180 |
Application Range of Grass Pellet Mill
- Application
Our grass pellet making machine can also be adapted to many raw materials. So we also use the name of the raw material to name the pellet machine. For example, in RICHI, we also call it:
The difference is that, according to different raw materials, some parts of the grass pellet mill for sale are different (ring dies of different sizes and apertures; customized feeders; etc.).
Why Choose RICHI Grass Pellet Making Machine
- Features
- Anti-Arch Structure In Grass Pellet Making Machine
On the top of the Grass pellet machine with a anti-caking bin . Inside the bin, there have two rollers for breaking the grass to avoid raw materials becoming cake . And the bin can keep grass pellet machine working more smoothly.
- Grass Pellet Mill Force Feeder
Because the grass material is too light , so it is difficult to enter into the pelleting chamber , so we add a force feeder here to improve the efficiency of the pelleting process.
- Grass Pelleting Chamber
Optimized structure of the grass pelleting chamber ensures the uniformity of the material and maximizes the working potential of the grass pellet machine. Through the pressure between ring die and rollers, to make pellets. After pelleting , the grass pellets temperature is high about 70-80℃. And have 98% qualified pellets, 2% powder.

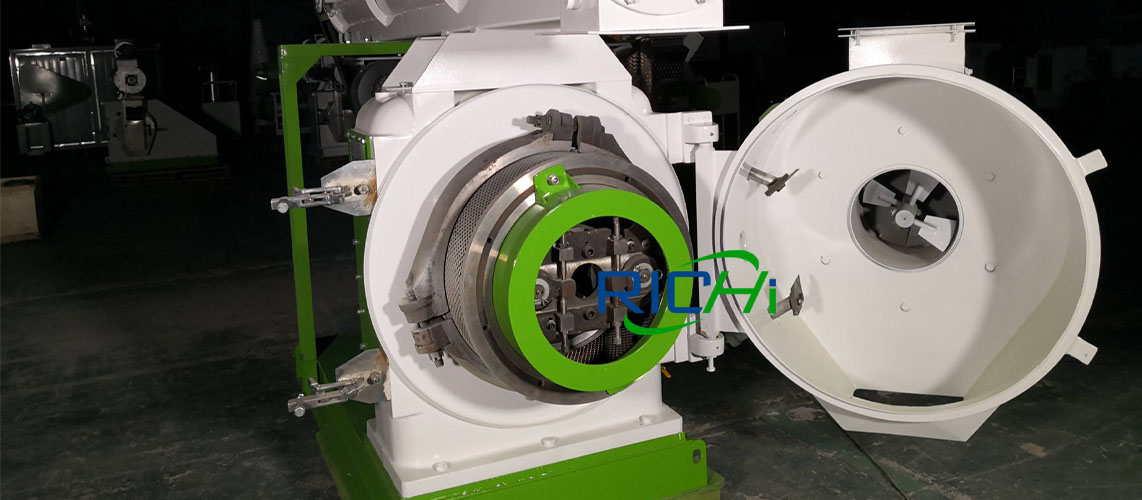

- Ring Die And Press Roller
This is the 304 stainless steel ring die, it determines the final sizes of the feed! For the ring die, it has the following data: “d”, which refers to the diameter of the ring die ; “h”, which the the depth of the hole, or you can say the thickness of the hole. (d/h=compression ratio).
- Grass Pellet Mill Cutting Device
To control the length of final grass pellets , means through adjust the distance between cutter and ring die to get the different length of pellets.
- Steam Discharging Outlet
When the grass pellet mill machine running , inside the pelletizing chamber ,the temperature is very high, and the moisture of grass enter into the pellet chamber is 15%-17% ,so it will produce a lot of steam . In order to keep the pellet machine good working, so we open a hole here, to connect with draught fan and cyclone, to exchange the steam inside the chamber and also reduce the temperature in the chamber.
- Siemens Motors ,SKF Bearings
Siemens electric motors are synonymous with quality, innovation and the highest efficiency. The high efficiency level reduces energy consumption and directly saves costs for users. High protection level to ensure the safety and reliability for users.
Grass Pellet Making Machine On Stock In RICHI
Trusted RICHI Grass Pellet Mill For Sale
26Years Experience of Manufacturing and Exporting
“We have 26+ years’ experience of grass pellet making machine, and have exported 110+ countries, such as USA, Canada, Indonesia, Australia, Netherlands, New Zealand, Greece, Italy, Angola, South Africa, Turkey, UK, Germany, Malaysia, Thailand and so on.”
Full Set of Certification
“RICHI has pass through the CE&IOS 9001 Certification, All the grass pellet machine for sale has tested before delivery.”
Support Delivery Anywhere in The World
“RICHI Machinery can ship the grass pellet making machine to your port in your country, we supply the FOB & CIF Price. Just contact us for more details.”
Full Support on Installation &Training
“We provide complete grass pellet mill for sale, installation at the customer’s local area and promise to train – ‘how to make grass pellets’ until the customer is proficient in operating the pelletizing system.”
