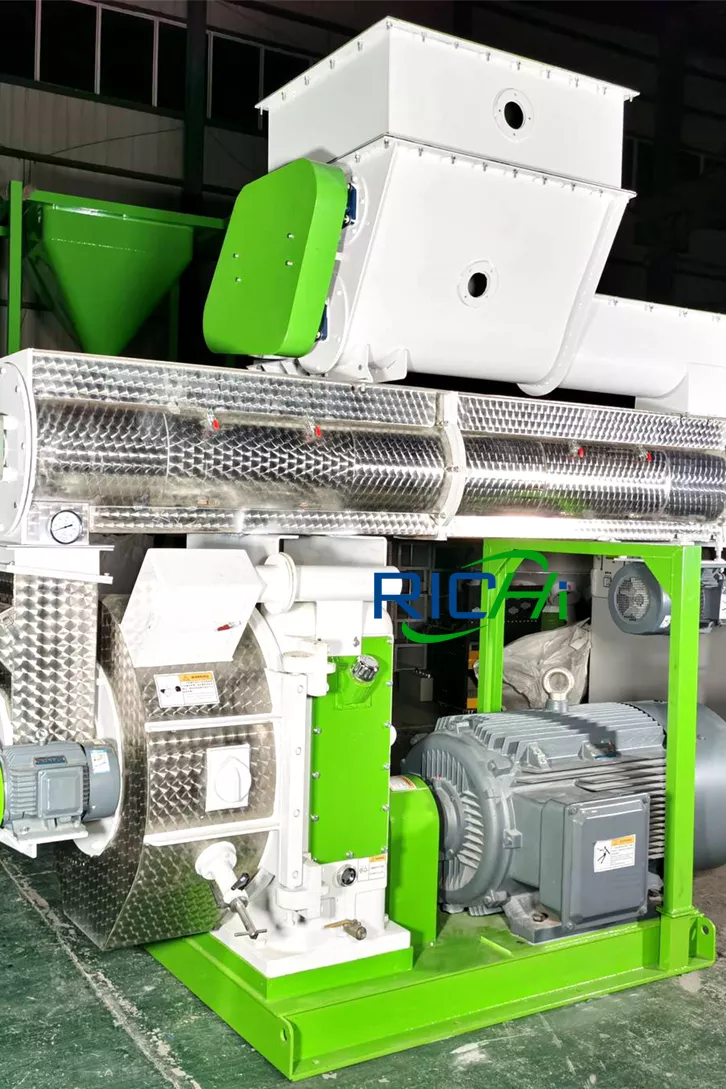

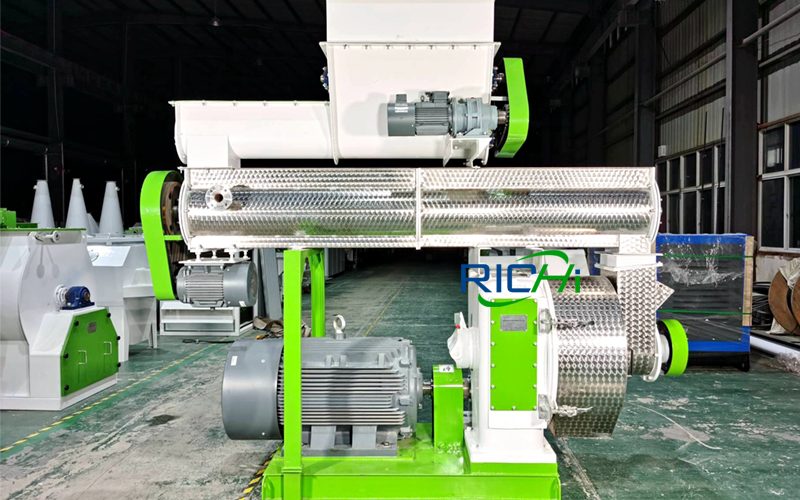

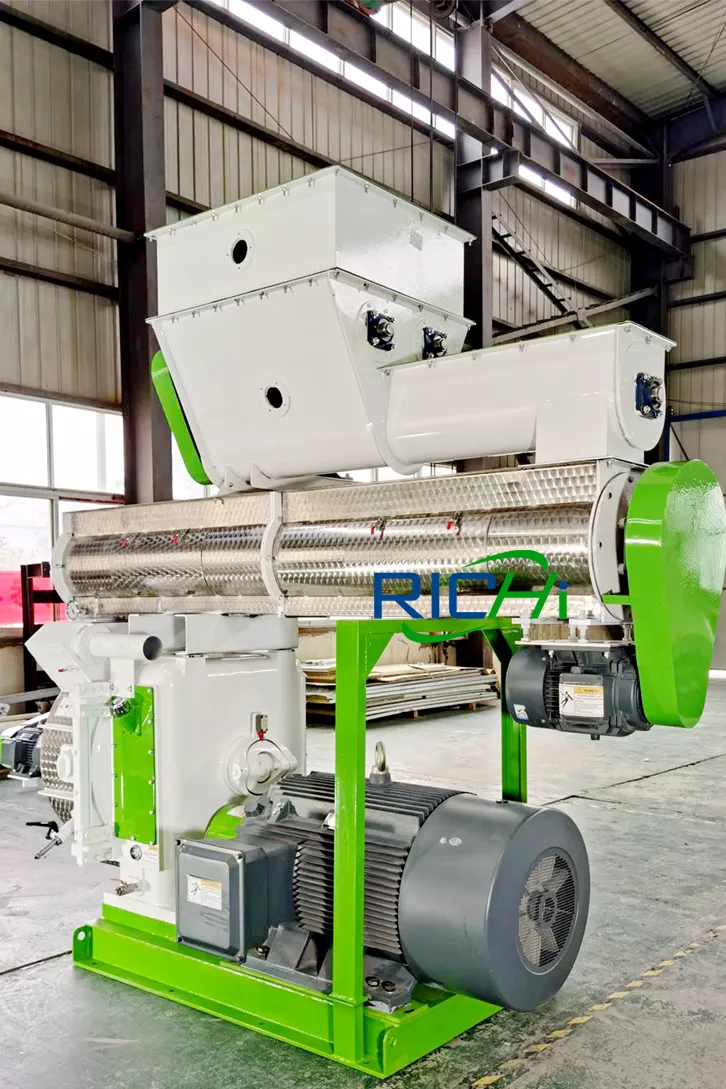

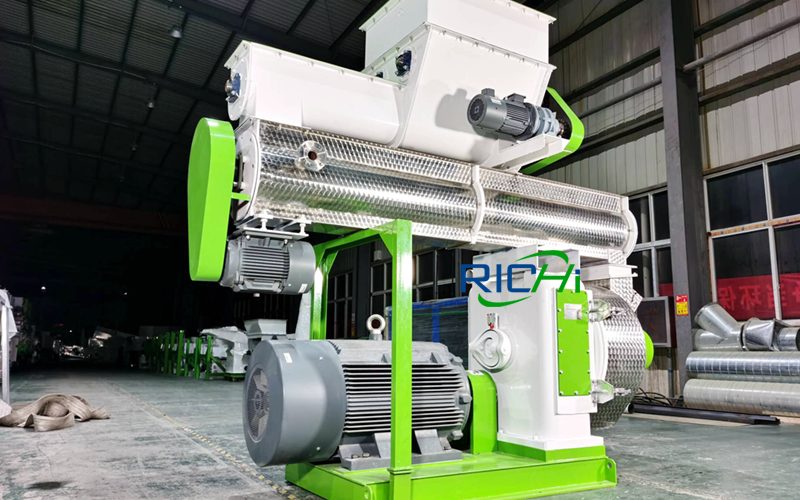

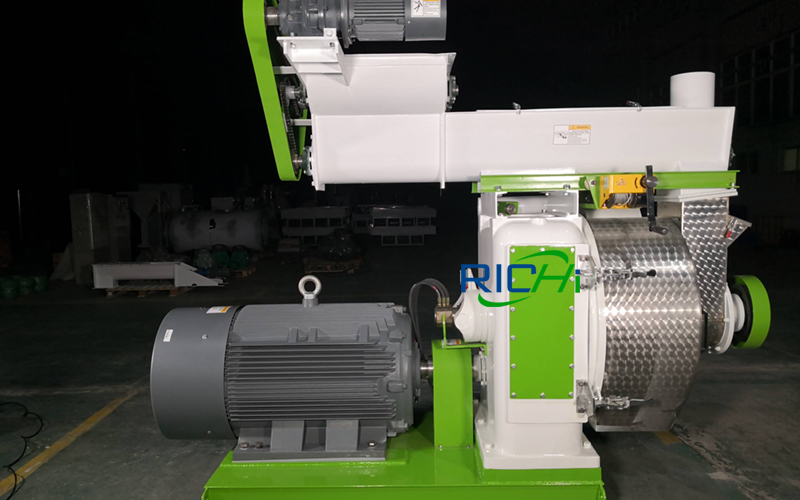

MZLH768 Series
Wood Pellet Press
MZLH768 series large commercial wood pellet press is mainly used for the production of wood pellets and biomass pellets. Enlarged feeders and larger ring die sizes are more suitable for wood pellet plants.
Can i make my own wood pellets?
The answer is yes. As long as you have sufficient raw materials and find suitable commercial land, you can build a complete wood pellet production line. It is no longer difficult to buy a pellet machine to produce your own wood pellets or to establish a commercial pellet factory. Startup your pelleting business with RICHI. RICHI can provide complete pellet production line design, equipment production, installation & training and a series of turnkey pellet solutions.
How to make a wood pellet press?
The wood pellet making equipment includes several parts from top to bottom: feeder, frequency conversion motor, pelletizing chamber, ring die, pressing roller, bearing, main motor, outer frame of pelletizer and so on. The feeder’s propellers, ring molds and pressure rollers that directly contact the raw materials are all made of stainless steel. In order to cope with special raw materials and increase production output and efficiency, we have added a compulsory feeder for the granulation chamber.
How much does a wood pellet machine cost?
As a professional wood pellet press manufacturer, RICHI needs to talk to some customers who want to buy wood pellet machines or enter the pelletizing industry for the first time.
Generally, the deciding factor of the wood pellet making machine price is the capacity, but different raw materials also restrict the capacity. For example, for the same wood pellet press machine, the production of grass-based raw materials is higher than that of sawdust-based raw materials. Different raw materials require pre-treatment processes, such as wood chipping, crushing and drying. With different displays and different natural material processing, we can design various schemes and configurations to ensure that it is the most suitable for customers.
So the important for us is, what are your raw materials and the expected pellet capacity? Contact us for wood pellet press prices and also you can customize wood pellet production lines from RICHI.
How to choose wood pellet manufacturing machine manufacturers or suppliers?
We recommend that customers need to determine the following points before buying or choosing wood pellet press from a certain factory:
Is it a real pellet machine manufacturer? Where is the address? Can you visit it?
Can the manufacturer designed the whole wood pellet making process according to different raw materials?
How about the production delivery capacity and delivery time? (Generaly, single machine within half a month, production line within one month to two months)
For industrial and commercial activities, we recommend the use of large ring die wood pellet press.
RICHI is a professional pellet machine manufacturer in China, and has a variety of wood pellet press for sale. In 26 years of development, we have exported to the USA, Australia, Canada, UK, New Zealand, Ireland, Italy, Germany, Malaysia, Indonesia, Thailand, India, Pakistan, etc.

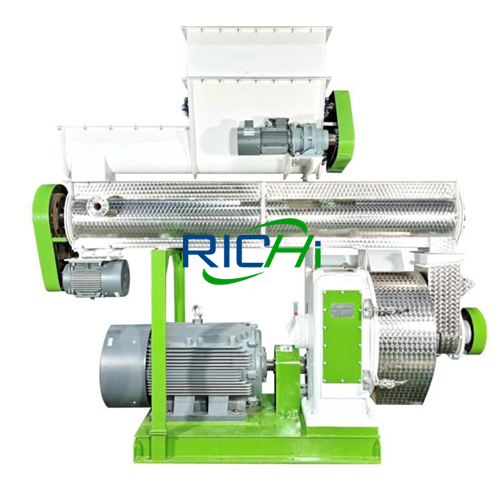

Wood Pellet Press For Sale

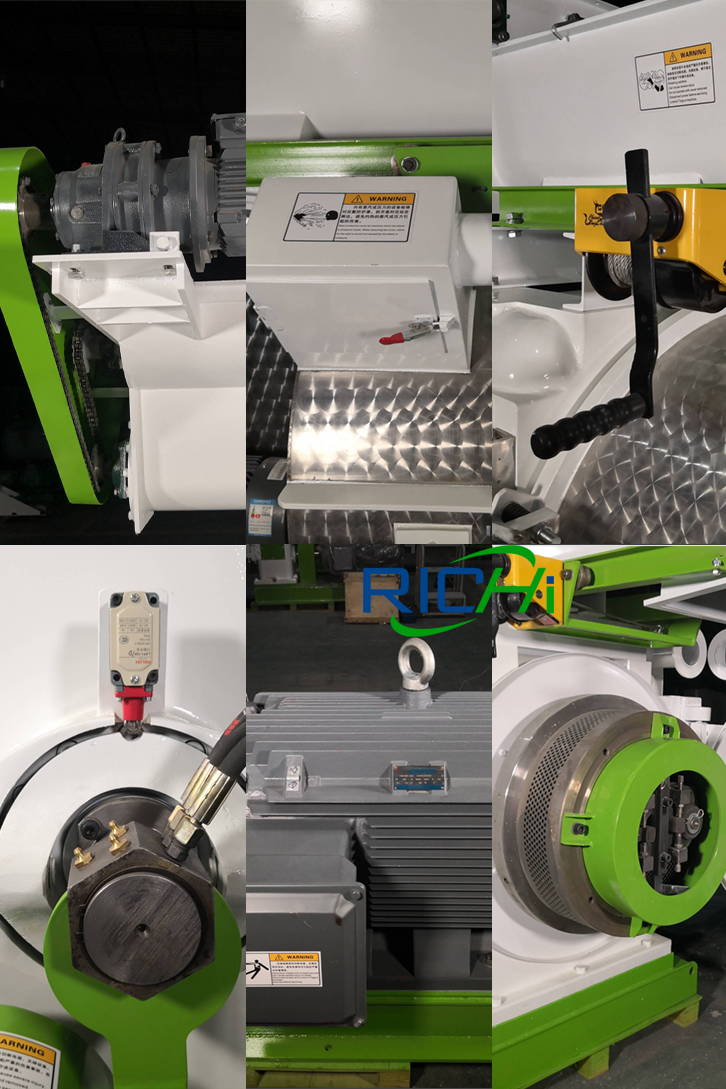

Prevent
Connected to the air duct, there is a mesh in the box to prevent the finished pellets from overflowing
Frequency
Due to the characteristics of biomass raw materials, we have added a variable frequency feeder with anti-caking device
Motor
We promise that all motors use Siemens motors
Protect
Protect machine(Producting main shaft, rotor and ring die)
Lifting Device
This small lifting device can help user to replace the very heavy ring die and roller assembly
Ring Die
304 stainless steel ring die, corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology
Buy Wood Pellet Press Today
Want to learn more about biomass wood pellet machines? Contact us for more information about the wood pellet making process before purchasing pellet machine.
Commercial Wood Pellet Press Technical Parameter
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH768 | MZLH858 |
|---|---|---|---|---|---|---|
| Anti-caking Feeder Power | 1.5KW | 1.5KW | 1.5KW | 2.2KW | 3KW | 3KW |
| Forced Feeder Power | 0.55KW | 0.55KW | 0.55KW | 0.75KW | 1KW | 1KW |
| Pellet Machine Power | 37KW | 55KW | 110KW | 160KW | 250KW | 280KW |
| Capacity(wood sawdust,biomass) | 300-400KG/H | 500-700KG/H | 1.0-1.2 T/H | 2.0-2.5 T/H | 2.5-4 T/H | 3-4.5 T/H |
| Capacity(grass,straw) | 600-800KG/H | 800-1000KG/H | 1.5-2 T/H | 3-4 T/H | 5-7 T/H | 8-10 T/H |
| Capacity(organic fertilizer) | 1-2 T/H | 3-4 T/H | 5-6 T/H | 7-8 T/H | 9-10 T/H | 10-12 T/H |
| Final Pellet | 6-12mm | 6-12mm | 6-12mm | 6-12mm | 6-12mm | 6-12mm |
| Weight(KG) | 2500 | 3500 | 4000 | 4500 | 5000 | 5500 |
| Dimension(mm) | 2200*900*1300 | 2500*1100*1600 | 2800*1150*1730 | 3000*1260*1860 | 3300*1500*2000 | 3500*1600*2180 |
Wood Pellet Making Video
Wood pellet press is new energy equipment for biomass. It is a pelletizing equipment for the production of wood pellets; it uses eucalyptus, birch, poplar, fruitwood, bamboo chips, and crop straws as raw materials, through crushing, drying, pelletizing, cooling, packaging, and other processes to produce finished wood biomass pellets.
The finished pellets are mainly used in biomass power generation, industrial boilers, fireplaces, household barbecues, and other equipment.
Also, welcome everyone to follow our wood pellet machine youtube channel for more video content.

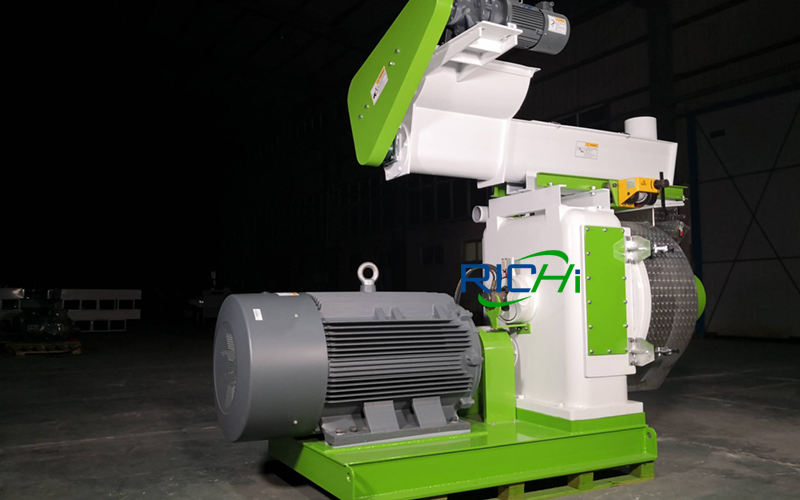

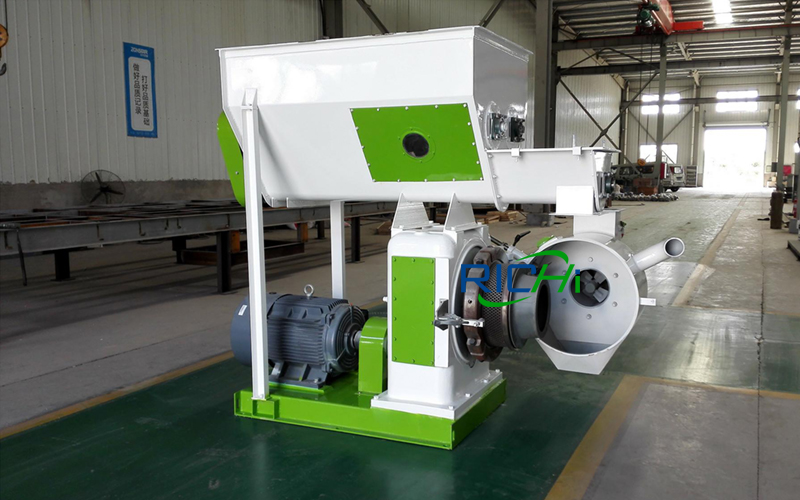

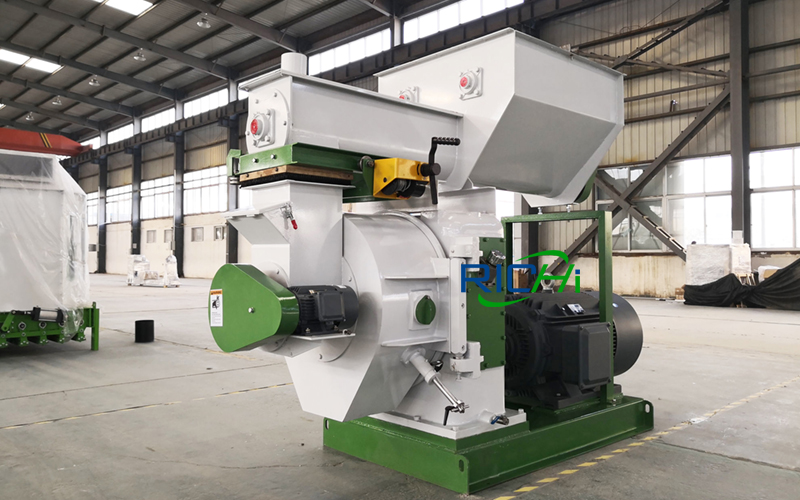

Find More Wood Pellet Machines For Sale
- Power: 380volt, 37kw, 50hz
- Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
- Pellet size: 6-12mm
- Power: 380volt, 55kw, 50hz
- Application：Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
- Pellet size: 6-12mm
- Power: 380volt, 110kw, 50hz
- Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
- Pellet size: 6-12mm
- Power: 380volt, 160kw, 50hz
- Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
- Pellet size: 6-12mm
- Power: 380volt, 250kw, 50hz
- Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
- Pellet size: 6-12mm
- Power: 380volt, 280kw, 50hz
- Application: Used for the production of biomass pellets, wood pellets, agricultural and forestry waste pellets
- Pellet size: 6-12mm
